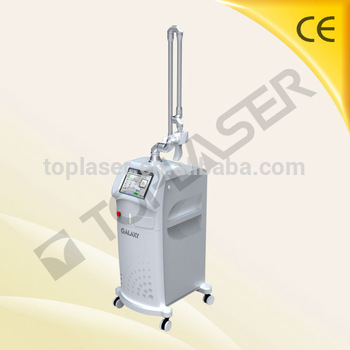

Rf-excited Co2 fractional laser system from Toplaser
1 . Particular designed intelligent laser control system ensures a precise treatment
2. RF-exited CO2 laser energy shooting is an even steady and safe treatment process.
3. Wide range application, effective treatment
4. Easy and fast treatment.
5. Large-sized colorful touch screen, with maniable handpiece.
10.6μm, far-infrared laser
Less than 2mW, red semiconductor laser
5-45mj, step value 5mj
1. Square or rectangle, min 3×3mm; max 20×20mm, step value 1mm.
2. Round, min 3mm (diameter), max 20mm (diameter), step value 1mm.
3. Ellipse, min 3×8mm, max, 15×20mm, step value 3mm.
1-5 (When increasing energy repeat, laser energy is increased synchronously, max total energy 225mj.)
36/49/64/100/144/225 dots in 1cm2
Normal, scan sequentially line by line.
Random, scan randomly, to decrease thermal accumulation. This function is not available for rectangle.
1-30W, step value 1W
1. Average power: 1w~30w; 2. Pulse frequency: 300Hz~950Hz optional
1. Average power: 1w~30w; 2. Pulse duration: 0.1s~1s optional
1. Average power: 1w~30w; 2. Pulse duration: 0.1s~1s optional,off time1ms
Comparison of CO2(RF) & CO2

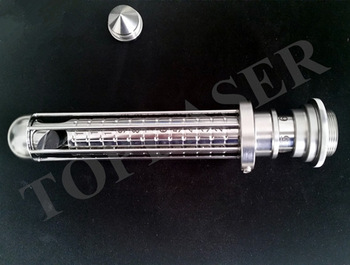

RF CO2 Tubefrom U.S.A

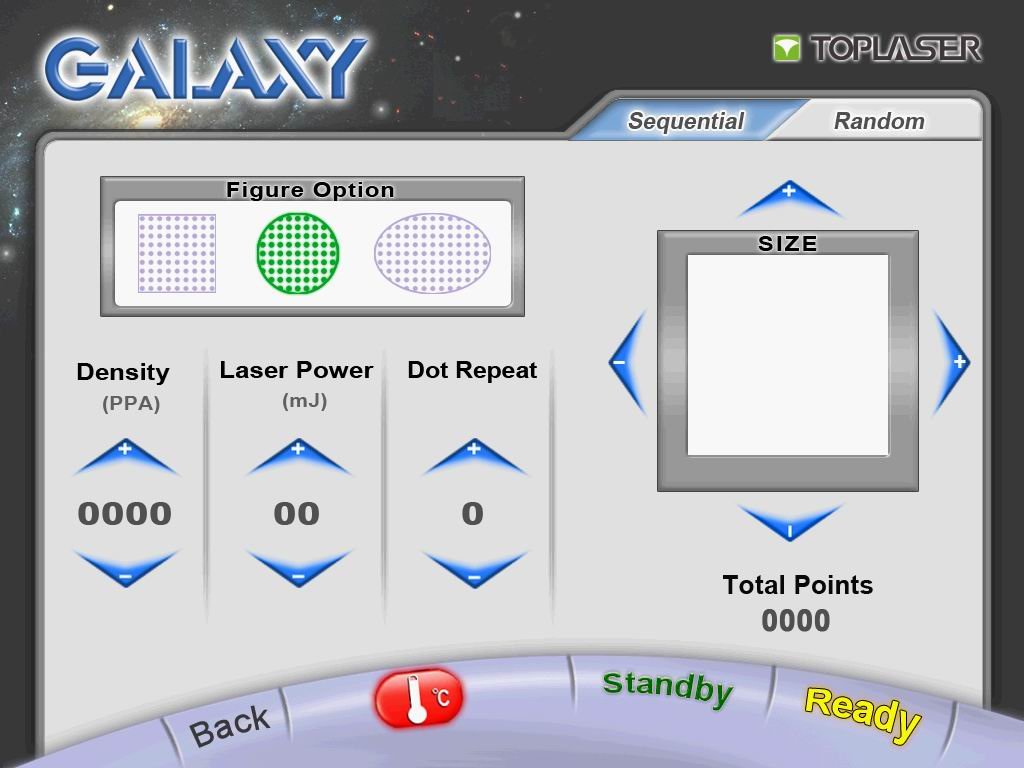

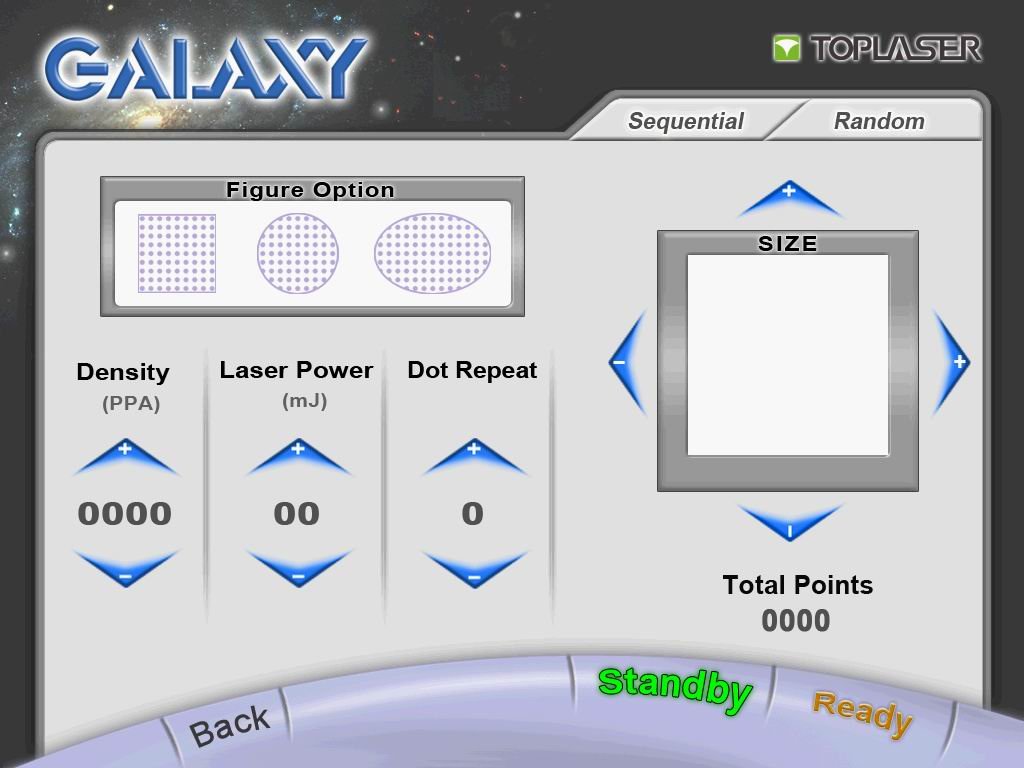

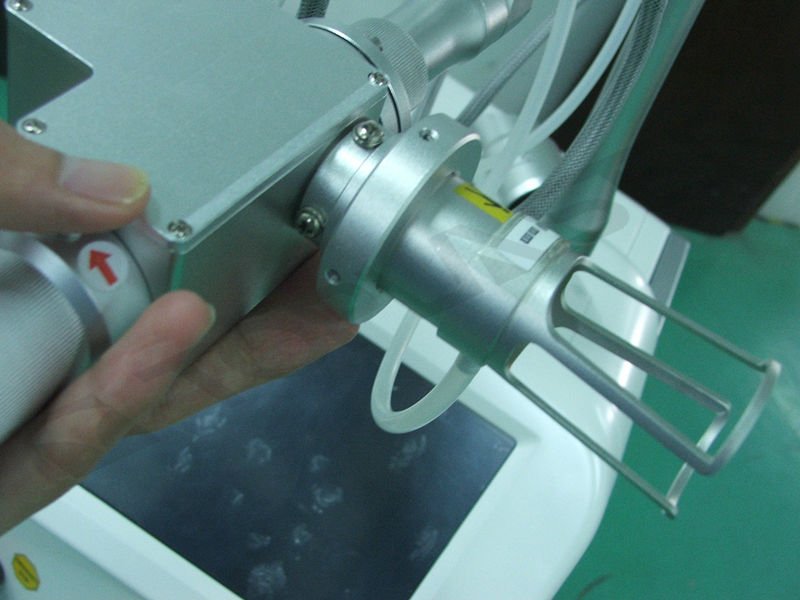

Interface and machine pictures
