Quick Details

  • Type: Laser, Clinic and hospital
  • Laser Type: CO2 Laser
  • Q-Switch: No
  • Style: Portable
  • Certification: FDA
  • Place of Origin: Beijing, China (Mainland)
  • Brand Name: Toplaser
  • Model Number: CO2-2B
  • Feature: Acne Treatment, Skin Rejuvenation
  • Key word: CO2 Fractional Laser for skin Resurfacing
  • ENT handpiece: Yes
  • ODM/OEM Free on design: Yes
  • Warranty: 12 Months
  • Voltage: 110V or 220V
  • Display: Color touch screen
  • Color: Multi-color for choose
  • Cooling Method: Fan cooling and water cooling
  • Laser Aiming beam: Yes

Packaging & Delivery

Packaging Details Wooden package
Delivery Time After received payment 5~ 7 days

CO2 Fractional Laser for Ablative laser skin Resurfacing for Toplaser

 Work principle


CO2-2 Laser Machines use 10.6μm invisible light, through the treatment method of non-contact cut, burn, and exposure, the heat will congeal, ablative vaporized, or carbonize the tissues, so as to shorten the operation time, and patients will have less bleeding, healing fast, and greatly enhance anti-infectious ability.




1. Skin renewing and resurfacing


2. Wrinkle removal, skin tightening


3. Acne and acne scar removal


4. Smooth burnt scars and surgery scars, etc


5. Remove intractable chloasmas and pigmentation


6. Sun damage recovery.





General Specification


10.6μm, far-infrared laser

Aiming Beam

Less than 2mW, red semiconductor laser

Scan Mode

Laser Energy

5-45mj, step value 5mj

Figure Option

1. Square or rectangle, min 3×3mm; max 20×20mm, step value 1mm.

2. Round, min 3mm (diameter), max 20mm (diameter), step value 1mm.

3. Ellipse, min 3×8mm, max, 15×20mm, step value 3mm.

Energy Repeat

1-5 (When increasing energy repeat, laser energy is increased synchronously, max total energy 225mj.)

Dot Density

36/49/64/100/144/225 dots in 1cm2


Normal, scan sequentially line by line.

Random, scan randomly, to decrease thermal accumulation. This function is not available for rectangle.

Normal Mode

Laser Energy

1-30W, step value 1W

Ultra Pulse(Super)

1. Average power: 1w~30w; 2. Pulse frequency: 300Hz~500Hz optional

Pulse (Single)

1. Average power: 1w~30w; 2. Pulse duration: 0.1s~2.0s optional

Continuous Wave



1. Average power: 1w~30w; 2. Pulse duration: 0.1s~1s optional,off time:1ms



























1. The TUV medical CE approved;


2. Normal and scan mode for choice;

3. Far-infrared laser Aiming beam


4. metal Tube is imported from U.S.A


5. The lifetime of the machine is more than 20,000 hours


6. Fan cooling, do not need to add water.


7. Particular designed intelligent laser control system ensures a precise treatment


8. RF-exited CO2 laser energy shooting is an even steady and safe treatment process.


9. Wide range application, effective treatment


10. Easy and fast treatment.


11. Large-sized colorful touch screen, with maniable handpiece.

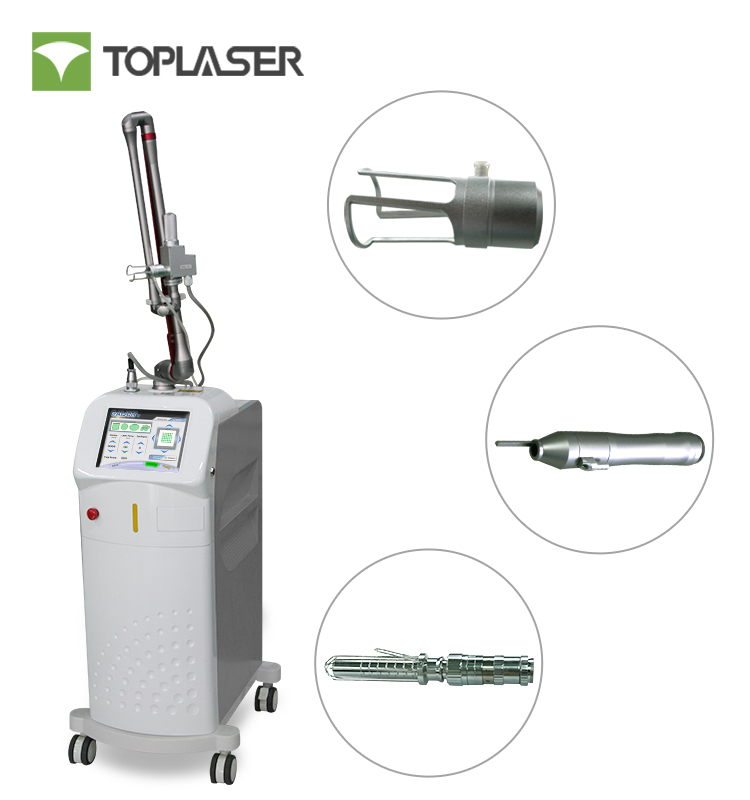

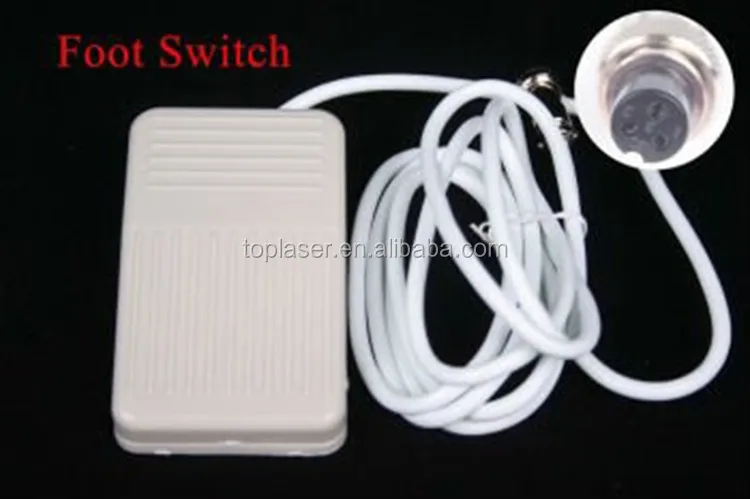

Interface and Spare parts:





                                                                    CO2 Vagina tighten handpiece




 Before and after pictures:





Packaging & Shipping

1. 3-5 working days after receiving the payment.

2.Transportation Way: DHL,Fedex, UPS, EMS, by sea, by air,etc.

We always choose the most economical and reliable shipping company to make sure you will receive the goods in time.

Tracking number will be provided to you once the goods is shipped.



Our Services


We can provide detailed user manual and video,they will show you how to maintain and operate the machine practically,also we can provide online education.


After sales service

we have special technician team, they will help you by online chatting . Any question about our machine, please feel freely to contact with us at any time. we promise we will help you solve the question with the greatest patience.
